hotsale factory price 2 port motorised zone valve

FOB Price:

US 8.69-20.46 / Piece

Min.Order Quantity:

50 Piece/Pieces

Supply Ability:

10000 Piece/Pieces per Month

Port:

Shekou/Yiantian

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

T/T,Western Union,Paypal

Brand:

OEM/ODM

Products Model:

ME3000

Products Details
Company Profile

Quick Details

Brand Name: OEM/ODM

Model Number: ME3000

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: 45pcs/carton Carton size:478mmX300mmX248mm Delivery: 15 days upon receipt of full payment.
Delivery Detail: Shipped in 15 days after payment

Specifications

Product Description

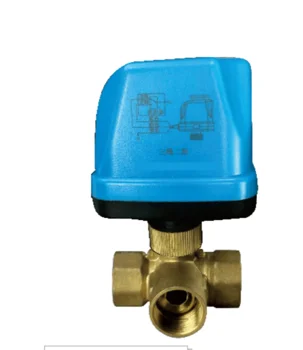

The MY-3000 series of electric actuated ball valve is high energy efficient and long service product, is widely applied HVAC water system for on-off control. It has two parts, actuator and valve. The actuator is used synchronous motor with good performance. It is also built-in limit switch. The motor(power consumption of 6w) starts when valve turned on or off. The valve open/close time is 5~15s which is much more energy saving compared with two-wire electric valve, as well as much longer service life.

Specifications

Medium: Cool/heat water or 60% glycol
Caliber: DN15,DN20,DN25,DN32, DN315,DN320,DN325, DN332
Structure: Two way or Three way
Operating Mode:on/off or 3-point control (24VAC)
Power Supply:AC220V,AC24V
Power Consumption:6W (during valve position change)

Operating time: 5~15s

Nominal Pressure:1.6MPa

Media temperature:2℃~95℃( 100~250℃ optional).

Pressure differential: 1.0 MPa

Material:

Valve: Brass, (stainless steel optional)

Ball valve: Stainless steel

Valve rod: Brass

Valve seat: PTFE

Seal: Dengqen rubber& PTFE

Protective housing: IP65

Maintainance: Free maintainance

Ways: Two way valve, three way valve down output, three way side output.

Connection: Pipe thread G

Model availability

Model		Spec.		Main dimensions				KV(m3/h)
Model		DN(mm)	Inner Thread(G)	L	H	H1	W	KV(m3/h)
Two way	MY-3000-DN215	15	1/2”	54	25			11
	MY-3000-DN220	20	3/4”	63	29			20
	MY-3000-DN225	25	1”	68	32			60
	MY-3000-DN232	32	1/2”	81	37			80
Three way	MY-3000-DN315	15	1/2”					11
	MY-3000-DN320	20	3/4”	72	27		39	20
	MY-3000-DN325	25	1”	84	32		59	60
	MY-3000-DN332	32	1/2”					80

Product Display

Packaging & Shipping

45pcs/carton

Carton size:478mmX300mmX248mm

Delivery: 15 days upon receipt of full payment

Our Services

Warranty: Two years

Company Information

Located in Shenzhen a vibrant China city not far from Hongkong, Shenzhen Myuet Energy Saving Equipment Co.,Ltd. is a high-tech enterprise of floor heating products covering R&D, production, sales and system integration solution.We have our own brand " Myuet", also we provide OEM/ODM service.

Our factory has automated production lines, SMT machine and temperature control product research laboratory factory,which have passed ISO9001: 2000 quality management system.Our LCD thermostat products are certified with CE, RoSHand demostic China Electrotechnical Commission safety certification.
